| Quantity: | |
|---|---|
PEC-S-3125/20/0.4
Pearl Electric
8504340000
What is Eco-Friendly Cast Resin Dry Type Transformer?
An eco-friendly dry type transformer is an electrical transformer designed with environmental sustainability in mind. Unlike traditional oil-immersed transformers, eco-friendly dry type transformers use solid insulation materials, such as epoxy resin, instead of oil. These transformers are engineered to minimize environmental impact throughout their lifecycle, from manufacturing to operation and disposal. Here are the key features and benefits of eco-friendly dry type transformers:
Key Features
1. Solid Insulation: Uses non-toxic, non-flammable solid insulation materials like epoxy resin, eliminating the risk of oil spills and reducing fire hazards.
2. Energy Efficiency: Designed to operate with high efficiency, minimizing energy losses and reducing overall energy consumption.
3. Low Emissions: Generates fewer greenhouse gas emissions during operation compared to traditional oil-immersed transformers, contributing to a smaller carbon footprint.
4. Recyclable Materials: Constructed using materials that can be easily recycled at the end of their lifecycle, promoting a circular economy.
5. Reduced Maintenance: Requires less maintenance than oil-filled transformers, which reduces the environmental impact associated with maintenance activities and waste generation.

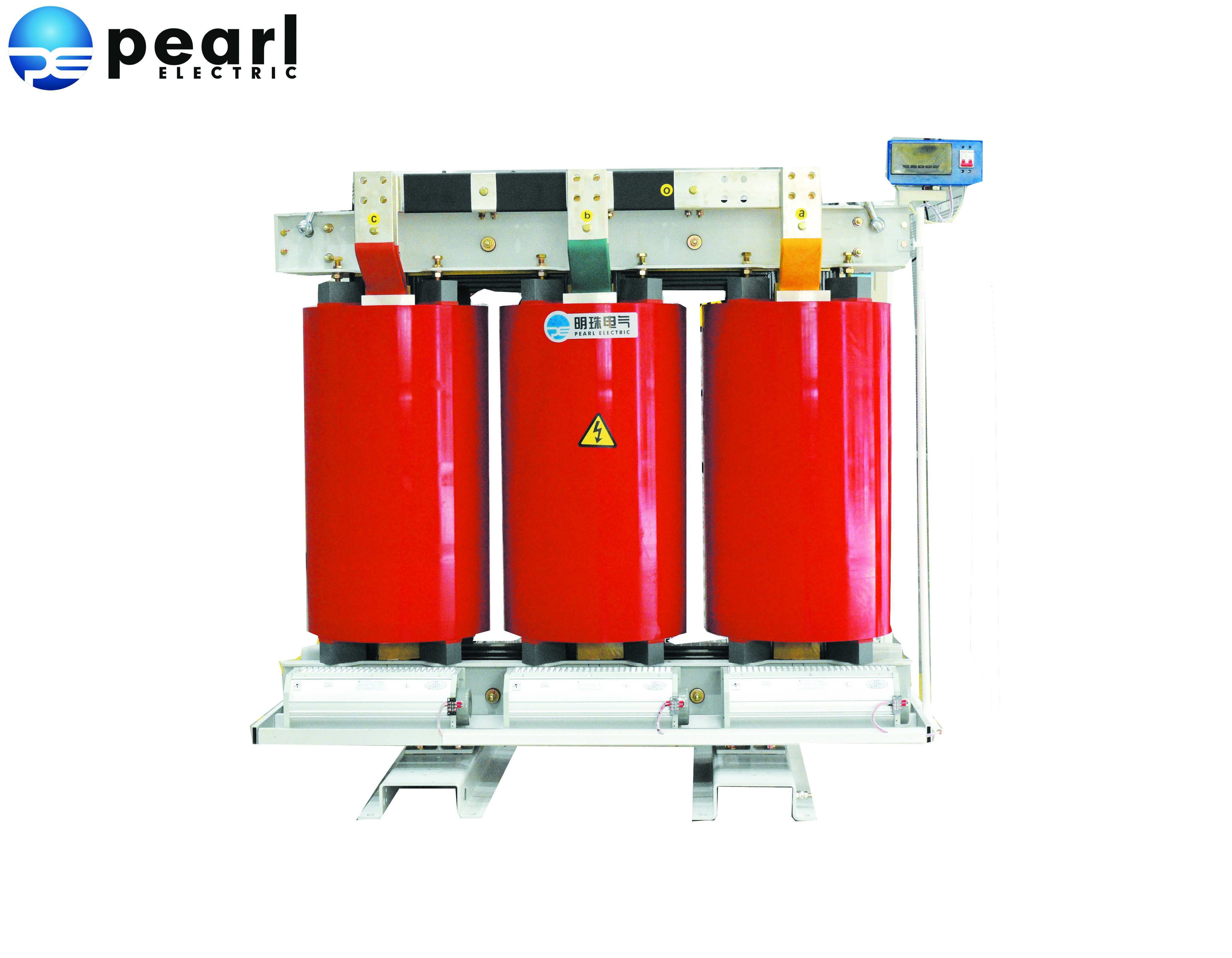

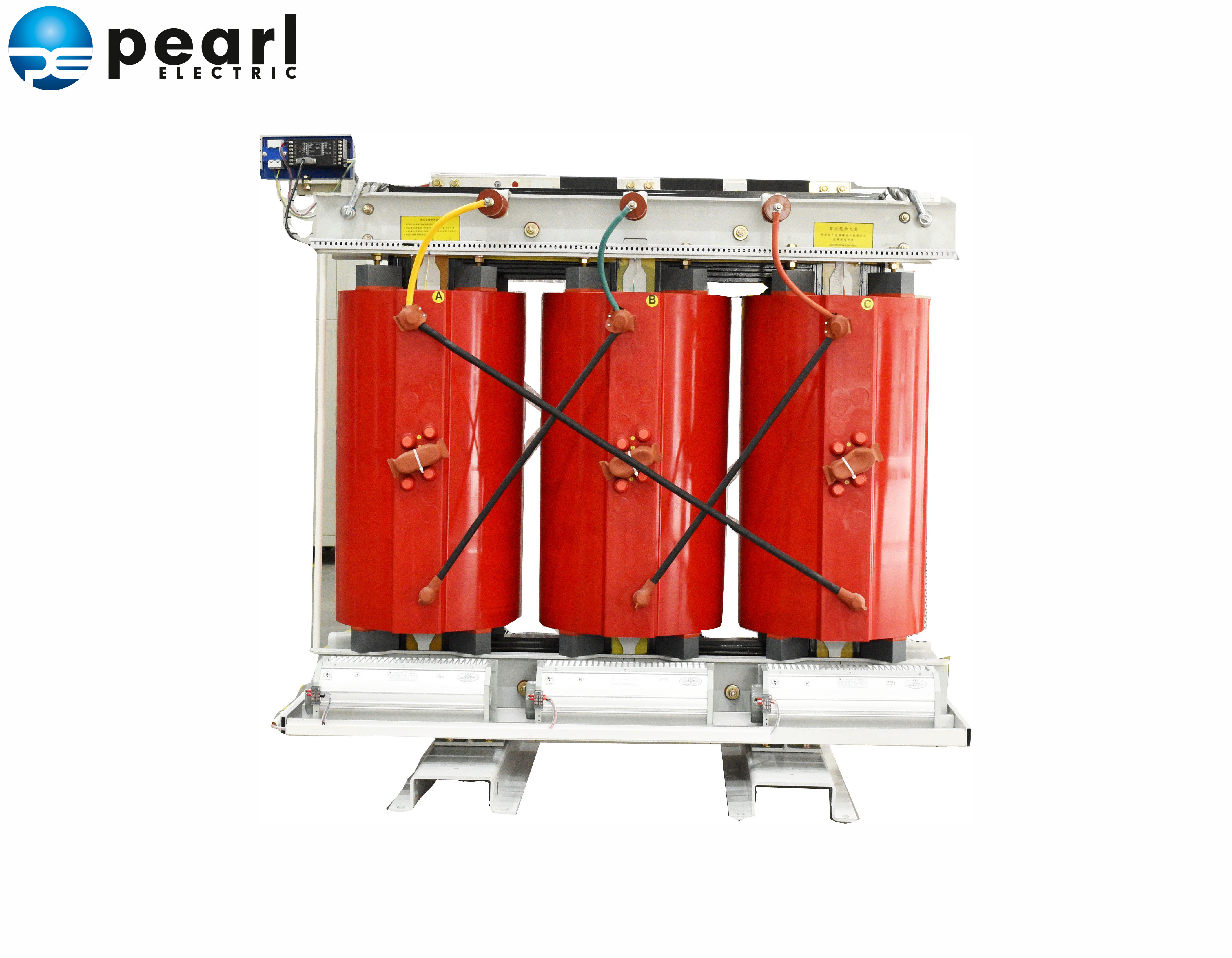

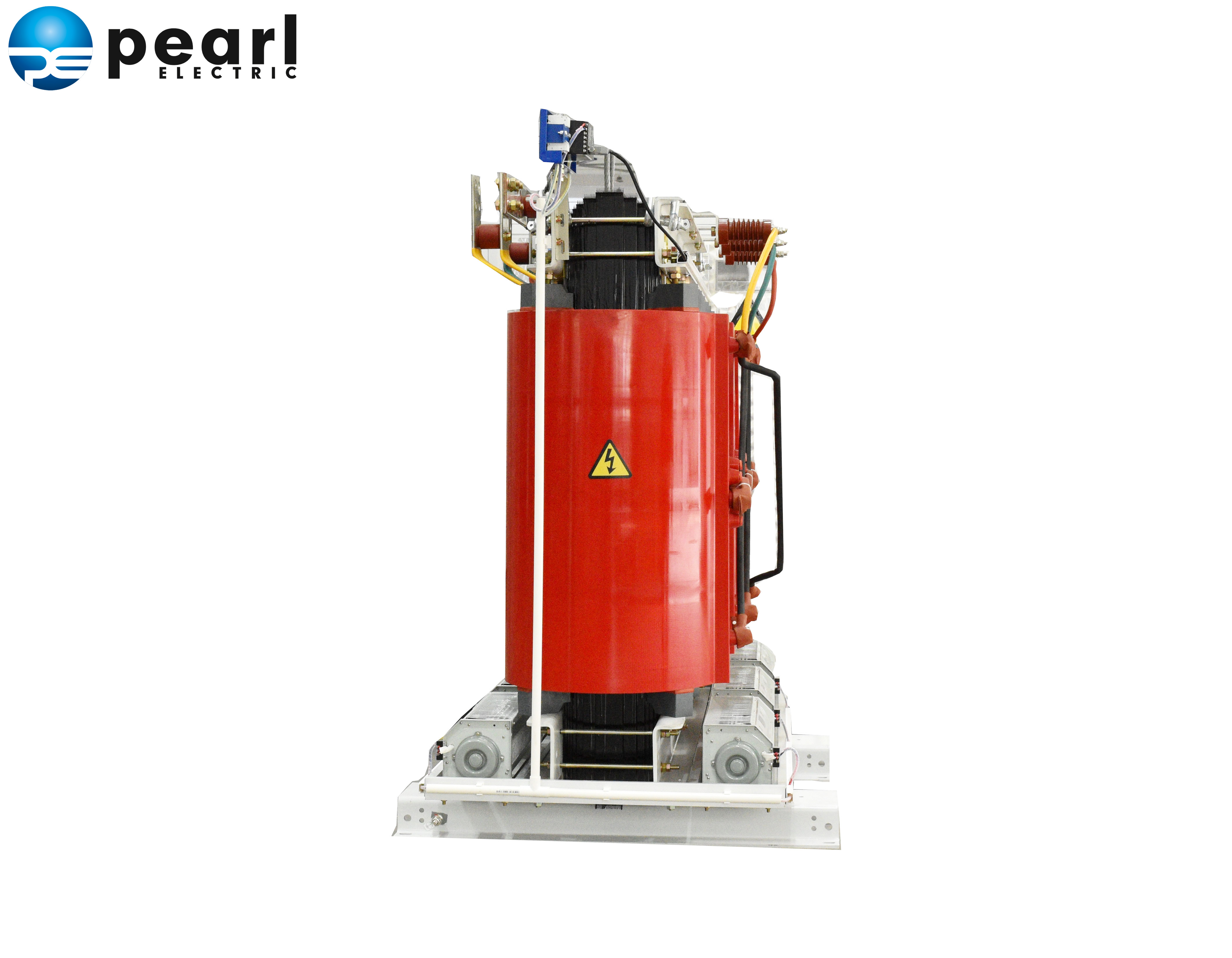

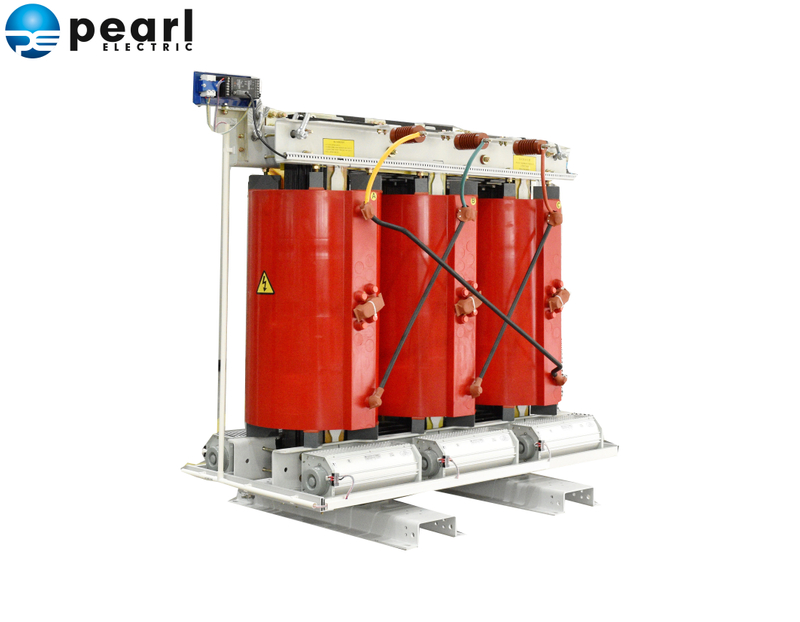

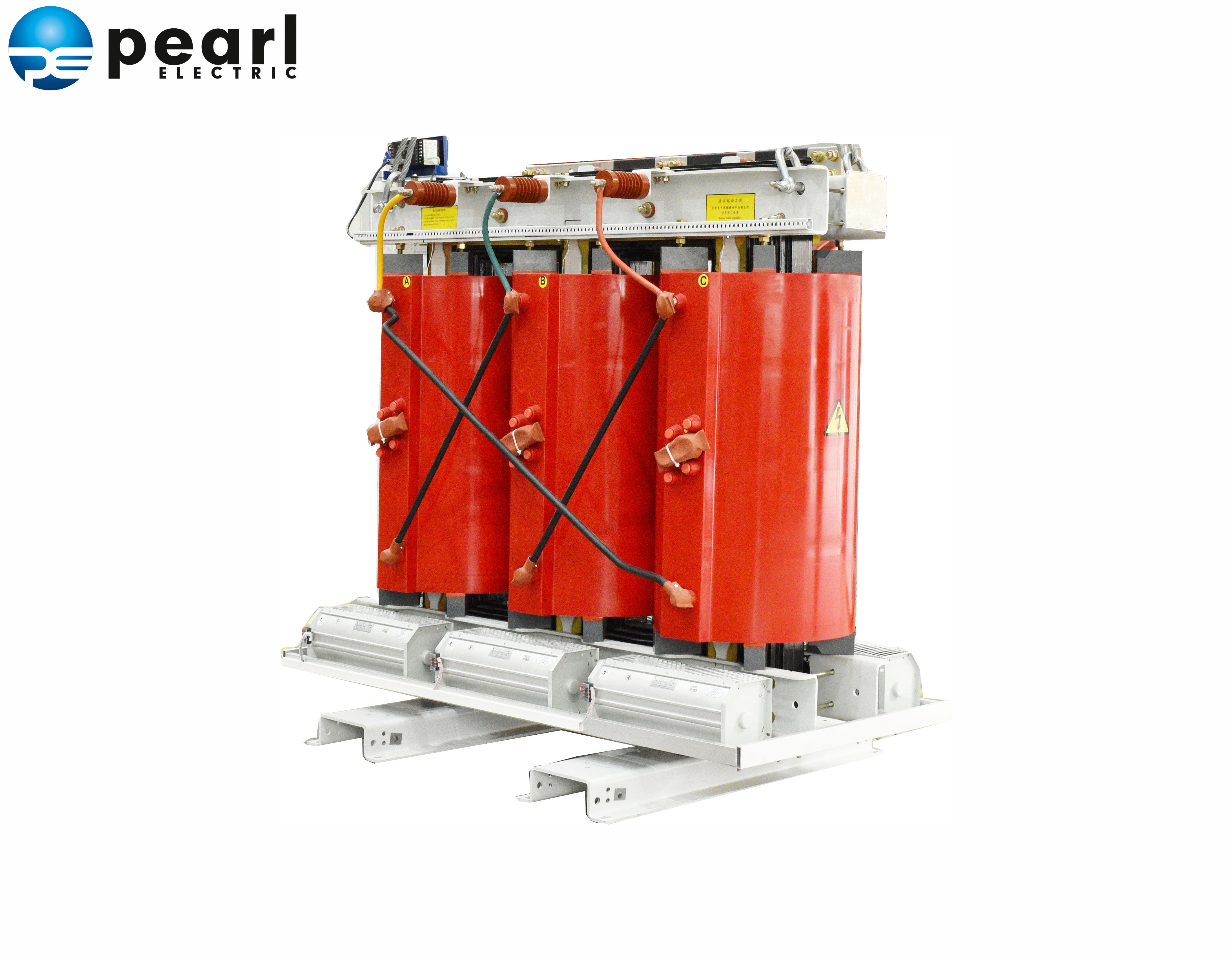

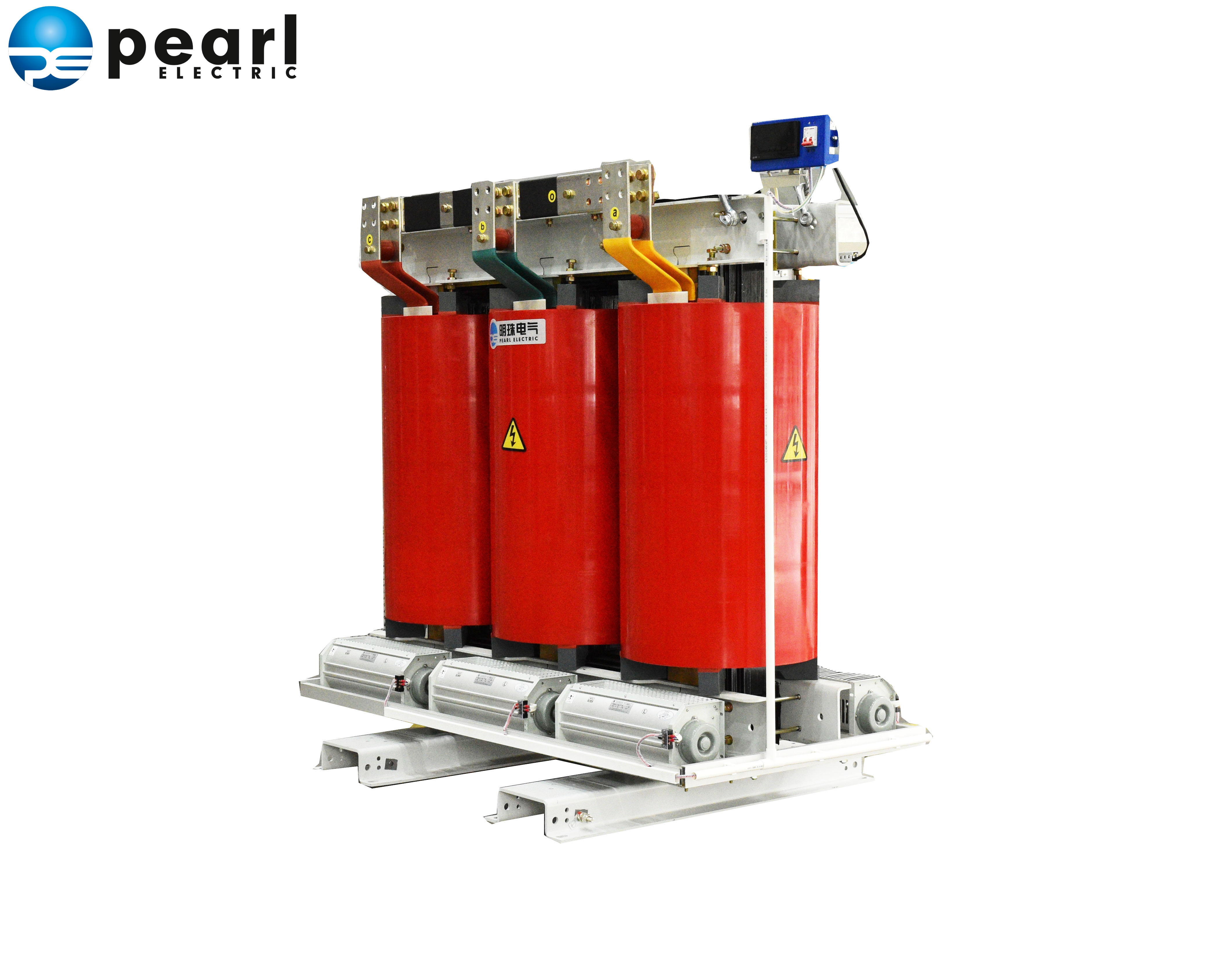

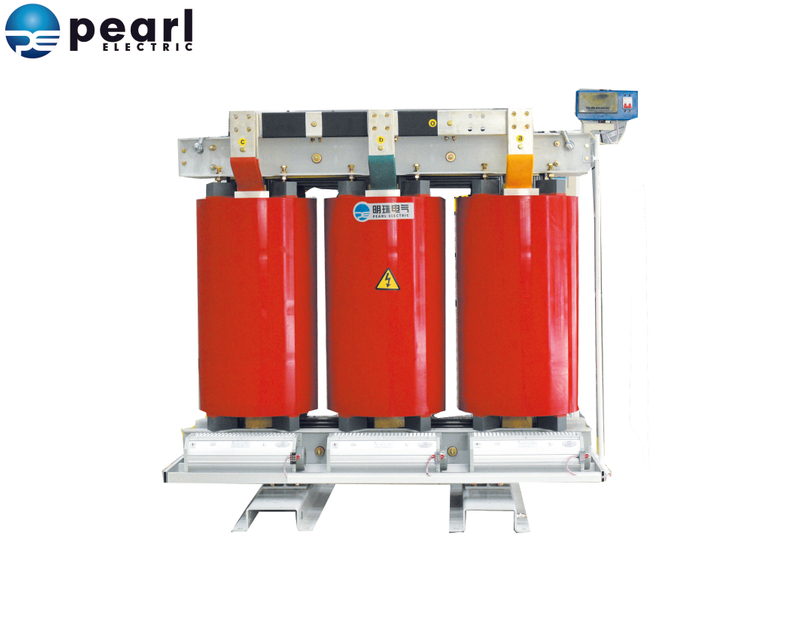

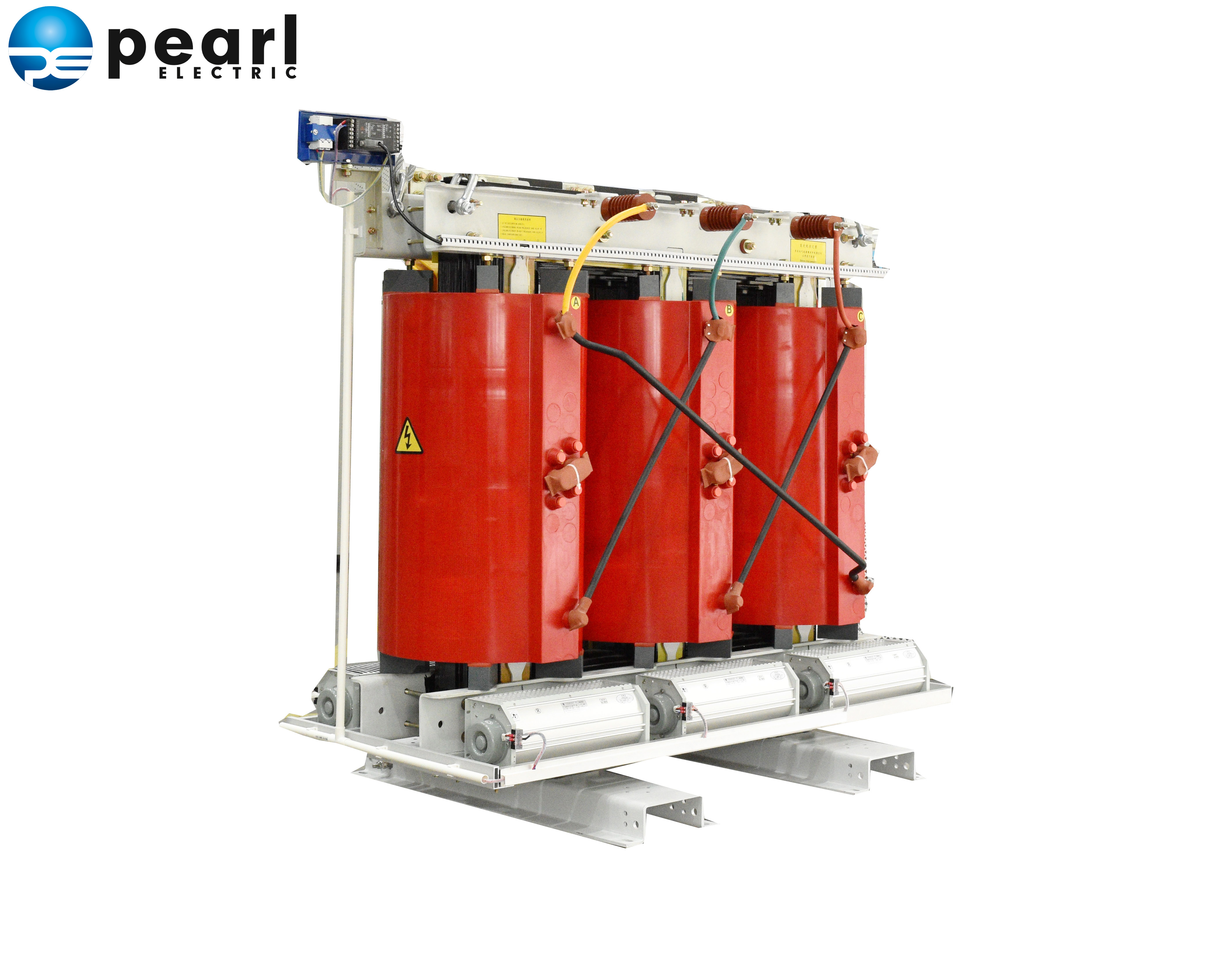

Technical Datasheet for 3125KVA Cast Resin Dry Type Transformer
Items | Item 01 |
Origin | China |
Manufacturer | Pearl Electric Co., Ltd. |
Brand | Pearl Electric |
Production Descriptions | PEC-S-3125/20/0.4 |
Reference standards | IEC 60076 |
Capacity | 3125kVA |
Frequency | 50 Hz |
Voltage (HV) (kV) | 20kV |
Voltage (LV) (kV) | 0.4kV |
Impedance | 8% |
Connections (Vector Group) | Dyn11 |
Tapping Range | off-load Tap Changer, |
Core materials | Silicon Steel |
Winding materials | Aluminum |
Lightning Impulse Withstand Voltage | 95/- |
AC withstand voltage | 50/3 |
Insulation Class | H-class |
Temperature Rise | 125K |
Cooling method | AN/AF |
The manufacturer to supply Eco-Friendly Cast Resin Dry Type Transformer
Pearl Electric Co., Ltd. is a leading manufacturer and supplier of power transformers and related electrical equipment. Established in 1958 and headquartered in Guangzhou, China, the company has a long history of innovation and excellence in the electrical industry. Pearl Electric specializes in the design, production, and sale of various types of transformers, including:
1. Oil-Immersed Power Transformers: These transformers are designed for high voltage and high power applications, providing efficient and reliable voltage transformation for power transmission and distribution networks.
2. Cast Resin Dry-Type Transformers: Known for their safety, low maintenance, and environmental benefits, these transformers are widely used in commercial buildings, industrial plants, and renewable energy installations.
3. Substation Solutions: Pearl Electric provides comprehensive solutions for substations, including transformers for photovoltaic power plants and compact wind farm substations, catering to the emerging needs of the renewable energy sector.
