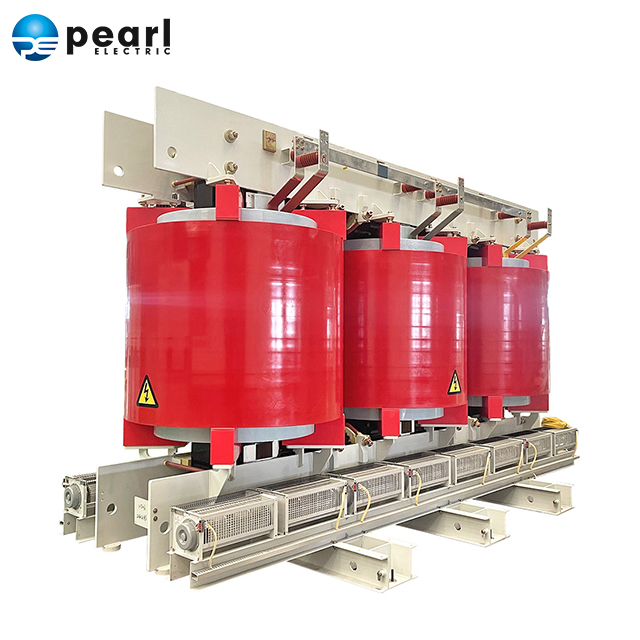

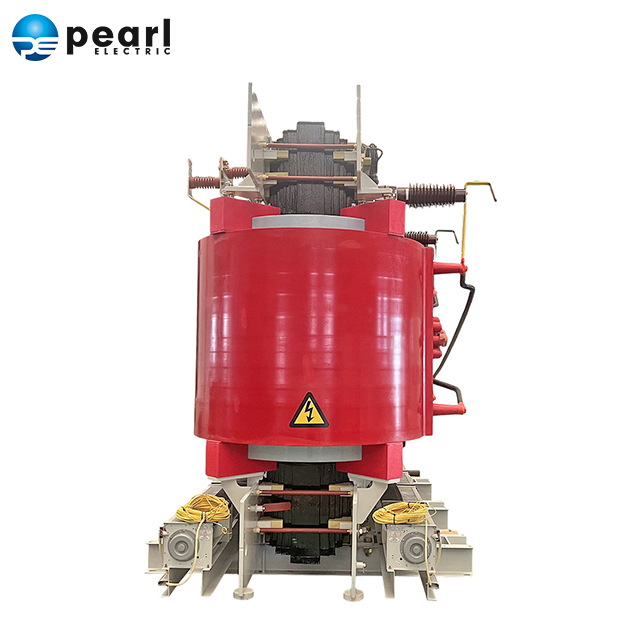

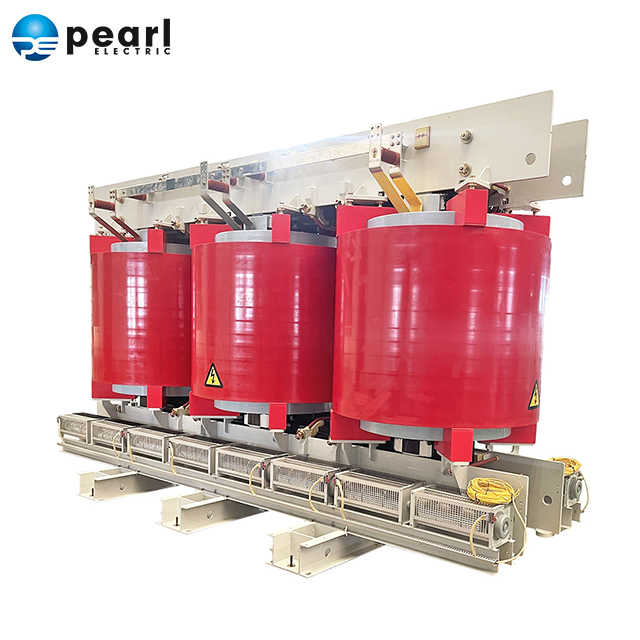

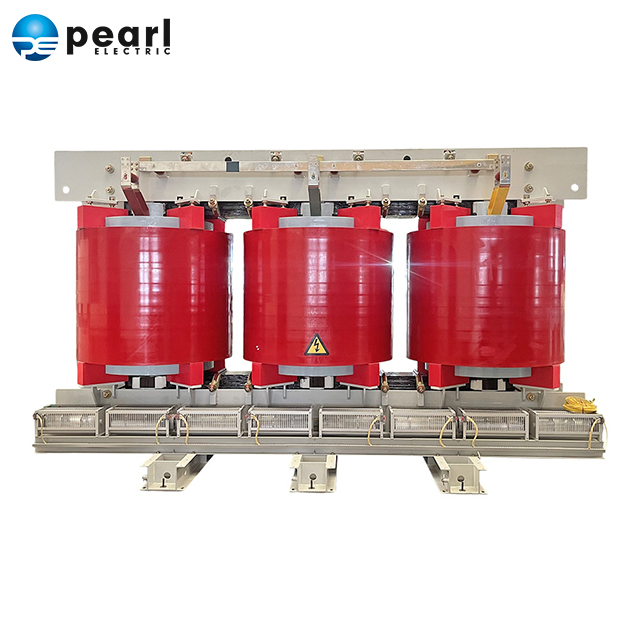

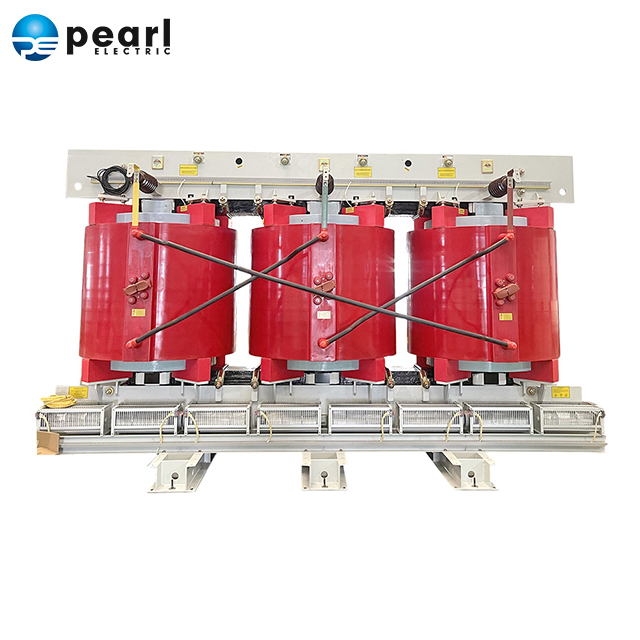

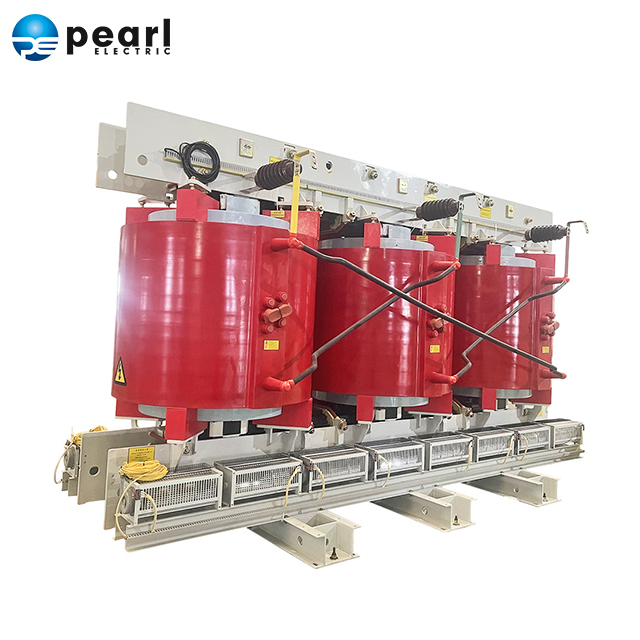

10.5MVA 35/4.95kV High-Efficiency Dry-Type Transformer is a specialized power transformer designed for superior performance and reliability. It features a dry-type split winding configuration, consisting of one high-voltage winding (35kV) and one or more low-voltage windings (4.95kV) with the same voltage and capacity per phase. This design ensures efficient power transmission between the high-voltage and low-voltage windings under normal operating conditions.
Product Parameter Table
| Parameter | Value |
|---|
| Voltage Range | 35/4.95kV |
| Capacity | 10.5MVA |
| Taps | ±2x2.5% (Standard) or OLTC |
| Frequency | 50Hz |
| Phases | Three-Phase |
| Insulation Level | LI/AC-125/50KV |
| Cooling | AN or AF |
| Insulation Class | F or H |
| Protection Level | IP20 or higher |
| Standards | IEC/IEEE/ANSI/GOST/NEMA/ECO/MEPS/ESKOM/MS/JEC/TEIAS |
Features of 10.5MVA 35/4.95kV High-Efficiency Dry-Type Transformer
High Capacity: 10.5MVA rated capacity to meet high-power demands.
Voltage Rating: 35kV high-voltage input and 4.95kV low-voltage output, suitable for various grid configurations.
Dry-Type Insulation: Oil-free design reduces fire risks, is environmentally friendly, and requires minimal maintenance.
Energy Efficient: Low-loss design improves energy efficiency and reduces operating costs.
Compact Design: Space-saving structure for easy installation and transportation.
High Reliability: Premium materials and advanced manufacturing ensure long-term stable operation.
Advatages of 10.5MVA 35/4.95kV High-Efficiency Dry-Type Transformer
High Efficiency: Designed with advanced materials and low-loss technology to maximize energy efficiency, reducing operational costs and improving overall system performance.
Compact and Space-Saving: Compact structure allows for easy installation in confined spaces, making it suitable for a variety of industrial and commercial applications.
Low Maintenance: Dry-type insulation requires minimal maintenance compared to oil-filled transformers, reducing downtime and operational expenses.
High Reliability: Built with premium materials and advanced manufacturing techniques to ensure long-term durability and stable performance under demanding conditions.
Environmental Compliance: Complies with international environmental standards (e.g., RoHS) and is free from hazardous substances, making it an eco-friendly choice.
Enhanced Safety: High protection rating (e.g., IP20 or higher) and robust design ensure safe operation in harsh environments.
Applications of 10.5MVA 35/4.95kV High-Efficiency Dry-Type Transformer
With a rated capacity of 10.5MVA, this transformer is ideal for industrial, commercial, and renewable energy applications, offering high efficiency, compact design, and long-term reliability. It complies with international standards and is certified for quality and environmental safety, making it a dependable choice for modern power systems. The following are some common application scenarios:
Industrial power systems
Commercial building power supply
Renewable energy projects
Data centers and critical facilities
FAQ of 10.5MVA 35/4.95kV High-Efficiency Dry-Type Transformer
1. Can this transformer limit short-circuit currents?
Yes, the split winding design allows the transformer to limit short-circuit currents during faults, enhancing system safety and stability.
2. Is this transformer customizable?
Yes, the transformer can be customized to meet specific voltage, capacity, and configuration requirements. Contact our team for tailored solutions.
3. How does this transformer contribute to energy savings?
Its low-loss design and high-efficiency materials reduce energy consumption, lowering operational costs and supporting sustainability goals.
4. What is the expected lifespan of this transformer?
With proper maintenance, the transformer has a long service life, typically exceeding 25-30 years, thanks to its robust design and high-quality materials.
5. How is the transformer installed and maintained?
Installation: Compact design allows for easy installation in confined spaces.
Maintenance: Dry-type insulation requires minimal maintenance, with periodic inspections recommended to ensure optimal performance.
