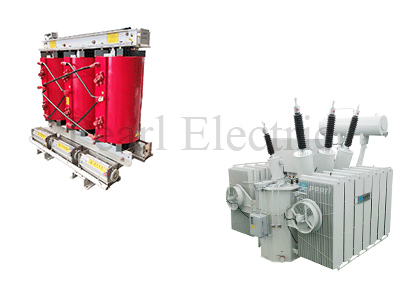

An oil-immersed transformer is a type of electrical transformer that uses oil as an insulating and cooling medium. This transformer operates by converting alternating current (AC) from one voltage level to another, either increasing (stepping up) or decreasing (stepping down) the voltage. The transformer consists of a magnetic core, windings, and bushings, all submerged in transformer oil, which plays a crucial role in maintaining the device’s functionality.
Oil-immersed transformers are widely used in electrical substations and power distribution centers due to their efficient cooling capabilities and ability to handle large amounts of power. The use of oil allows for better thermal management compared to air-cooled transformers, making them suitable for high-load applications.
The working principle of an oil-immersed transformer is based on electromagnetic induction. When AC flows through the primary winding, it creates a magnetic field that induces a current in the secondary winding. This process allows for voltage transformation, either increasing or decreasing the voltage as needed.
Transformer oil serves dual purposes: it provides cooling and insulation. The oil circulates around the windings and magnetic core, dissipating heat generated during operation through convection. Additionally, it acts as an insulator, preventing electrical arcing and enhancing the safety of the transformer. To maintain optimal performance, the operating temperature of the transformer oil should be kept below 85°C, with an average operating temperature around 30°C to prevent oil deterioration.
Oil-immersed transformers come in various types, each designed for specific applications:
1. Single-Phase Transformers: These transformers have one pair of windings and are commonly used in lower-load situations, such as rural electrical distribution.
2. Three-Phase Transformers: Comprising three sets of windings, three-phase transformers are used in higher-load applications and are capable of supplying three circuits with energy simultaneously.
3. Power Transformers: Designed for high-capacity applications, power transformers can step voltages up or down and are used in major electrical networks.
4. Distribution Transformers: These transformers reduce high voltage from the grid to lower voltage levels suitable for residential and commercial use. They are typically smaller and installed closer to the end-user.
5. Pole-Mounted Transformers: Installed on utility poles, these transformers are often used in urban areas for overhead electrical distribution.
6. Pad-Mounted Transformers: Located on a concrete pad on the ground, these transformers are commonly used in urban settings where space is limited.
Each type of oil-immersed transformer has its unique characteristics and applications, making it essential to choose the right one based on the specific needs of a project.
Oil-immersed transformers offer several advantages that make them a preferred choice in many applications:
1. Cooling Capabilities: The oil in these transformers efficiently absorbs and dissipates heat, allowing them to handle higher loads without overheating. This feature enhances their operational efficiency and longevity.
2. High Voltage Capacity: Oil-immersed transformers can operate at much higher voltage levels compared to dry-type transformers, making them suitable for heavy-duty applications.
3. Versatile Applications: Their design allows them to function effectively in various settings, from small residential installations to large industrial setups.
4. Affordability: Generally, oil-immersed transformers are more cost-effective than dry-type transformers with similar capacities. This makes them a popular choice for many utility companies and industries.
5. Environmental Considerations: While they do use oil, which raises concerns about leaks and spills, oil-immersed transformers can be designed to minimize environmental impacts. Many modern transformers utilize eco-friendly oils that are biodegradable and less harmful in the event of a spill.
6. High Security: Oil-immersed transformers have robust designs that provide additional protection against environmental hazards, ensuring reliable operation even in adverse conditions.
7. Sustainable and Recyclable: The materials used in manufacturing oil-immersed transformers, including the transformer oil, can often be recycled, contributing to sustainability efforts in the electrical industry.
Regular maintenance is critical for the longevity and efficiency of oil-immersed transformers. Here are some key maintenance and safety considerations:
1. Visual Inspections: Conducting routine visual inspections is essential to ensure that all components are in good condition. Look for signs of wear, corrosion, or potential leaks in the oil.
2. Oil Quality Monitoring: The quality of the transformer oil is crucial for performance. Regular testing should be conducted to check for contamination and ensure that the oil remains effective as an insulating and cooling medium.
3. Temperature Control: Monitoring the temperature of the transformer and the oil is vital. Ensure that the operating temperature remains within the recommended limits to prevent oil deterioration.
4. Leak Prevention: One of the significant safety risks associated with oil-immersed transformers is the potential for leaks. Implementing proper containment measures and regular checks can help mitigate this risk.
5. Fire Safety: Although modern oil-immersed transformers are designed to be self-extinguishing and have a low fire hazard, fire risks still exist. Proper installation and maintenance practices should be in place to minimize these risks, including the installation of fire suppression systems if necessary.
6. Documentation: Keeping accurate records of maintenance activities, inspections, and oil testing results is essential for tracking the condition of the transformer and planning future maintenance.
Oil-immersed transformers are a vital component of modern electrical systems, providing efficient voltage transformation and cooling capabilities. With their ability to handle high loads and versatile applications, they are widely used in electrical substations and power distribution centers. While they require regular maintenance and careful monitoring to ensure safety and efficiency, the advantages they offer make them an excellent choice for many applications.
The primary function of an oil-immersed transformer is to convert alternating current (AC) from one voltage level to another while using oil for insulation and cooling.
Oil helps by providing cooling through convection and insulation, preventing overheating and electrical arcing.
Yes, modern oil-immersed transformers are designed to be safe and self-extinguishing, although regular maintenance is essential to minimize fire risks and leaks.
Oil-immersed transformers are suitable for a wide range of applications, including electrical substations, power distribution centers, and residential and commercial power supply.
Regular visual inspections, oil quality monitoring, temperature control, and ensuring leak prevention are critical maintenance practices for oil-immersed transformers.
